PCB Requirements for Smart Home IoT Devices

Smart home products look simple from the outside. A wall thermostat, smart plug, Wi-Fi light controller, video doorbell, or occupancy sensor may be sold as a compact consumer device with a clean industrial design and a mobile app. Inside, however, the PCB often has to solve a difficult engineering problem.

Unlike many conventional electronics, smart home IoT devices usually combine several constraints at the same time: limited board space, wireless connectivity, low power consumption, thermal restrictions, cost pressure, and the need for stable long-term operation in a real residential environment. The board is not just there to carry the circuit. It has to support sensing, communication, power conversion, firmware updates, and product reliability within a very tight design window.

That is why PCB requirements for smart home IoT devices are different from those of many other embedded products. A board that works electrically in the lab may still perform poorly in the field if wireless performance is unstable, standby power is too high, thermal buildup affects sensors, or manufacturing variation causes inconsistent behavior across production lots.

This article looks at the main PCB requirements that matter most in smart home IoT design, from size and layout to RF integrity, power management, manufacturability, and long-term reliability.

Why Smart Home IoT PCB Design Is Different

Smart home electronics sit in an unusual position between consumer products and semi-industrial embedded systems.

On one side, they are subject to strong commercial pressures. They need to be compact, visually unobtrusive, and cost-competitive. In many product categories, margins are tight, and the board has to fit inside a plastic enclosure that leaves little room for layout flexibility.

On the other side, they are expected to behave like infrastructure. A smart home device may remain installed for years. Users expect it to connect reliably, recover from power interruptions, respond quickly, and operate with very little attention. Unlike a disposable gadget, a smart lock, alarm sensor, lighting controller, or HVAC node becomes part of the building environment.

That combination creates a distinct IoT PCB design challenge. The board must support:

• compact mechanical integration
• reliable wireless communication
• low standby power
• stable sensing and control performance
• safe and consistent power conversion
• manufacturability at scale
• acceptable cost for consumer deployment

Design priorities therefore need to be set carefully. In many smart home devices, the best PCB is not the most advanced board in theory. It is the board that meets all of these constraints at the same time without creating hidden reliability problems later.

Common Types of Smart Home IoT Devices

Although smart home products vary widely, their PCB requirements often follow a few recurring patterns.

Sensor-Based Devices

These include motion sensors, temperature and humidity nodes, door and window sensors, leak detectors, air quality monitors, and occupancy sensors.

Their boards are often small and power-sensitive. They may spend most of their life in sleep mode and wake only briefly to measure, process, and transmit data. In these products, battery life, sensor stability, and RF efficiency are often more important than raw processing capability.

Control and Switching Devices

Examples include smart switches, dimmers, relays, thermostats, smart plugs, curtain controllers, and appliance control modules.

These products often combine low-voltage logic with higher-voltage switching or power-handling sections. The PCB must support control intelligence and communication while maintaining good isolation, safe spacing, and stable thermal behavior.

Connected Interface Devices

This category includes indoor panels, voice-enabled hubs, touchscreen controllers, and video-enabled devices such as doorbells or monitors.

These boards are more integration-heavy. They may combine wireless modules, memory, processors, audio or video interfaces, power conversion, and user interface circuits. Here, routing density, EMI control, thermal management, and signal integrity become more demanding.

Battery-Powered Smart Home Devices

Many smart locks, wireless sensors, and portable smart home nodes fall into this category.

These boards need aggressive low-power design, careful regulator selection, stable battery monitoring, and layout decisions that reduce leakage and waste. In practice, battery-powered IoT boards often fail commercially not because the core function is wrong, but because real battery life falls short of user expectations.

The Most Important PCB Requirements for Smart Home IoT Devices

1. Compact Size Without Creating a Layout Problem

Smart home products are often enclosure-driven. The industrial design team may define a thin, narrow, or highly constrained housing very early, and the PCB has to fit around that decision.

This creates immediate tradeoffs. A smaller board saves space, but if the layout becomes too dense, several problems follow:

• routing becomes more difficult
• antenna performance may degrade
• thermal coupling between components increases
• test access becomes limited
• rework and inspection become harder
• manufacturing tolerance becomes less forgiving

A compact PCB is desirable, but over-compression usually creates downstream penalties. In smart home devices, small size should come from disciplined partitioning and smart layer usage, not from forcing every function into the same crowded region.

Common strategies include separating RF, power, and sensing areas as much as the form factor allows, using board shape creatively to match enclosure geometry, and preserving keep-out regions around antennas rather than treating them as leftover space.

2. Reliable Wireless Performance

Wireless connectivity is one of the defining characteristics of smart home IoT products, and it is also one of the most common sources of field complaints.

Whether a product uses Wi-Fi, Bluetooth, Zigbee, Thread, LoRa, or another protocol, RF performance depends heavily on PCB decisions. The wireless module alone does not guarantee good results.

Several board-level factors matter:

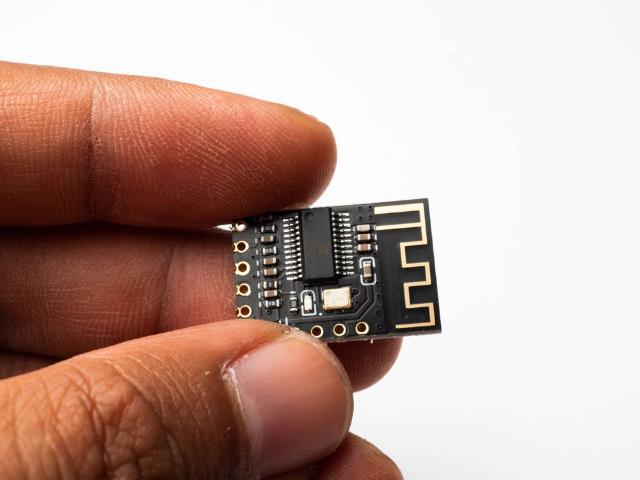

Antenna Keep-Out and Placement

If the antenna is crowded by copper, shielding structures, batteries, metal brackets, or dense component placement, radiation efficiency can fall sharply. Many smart home devices fail to reach expected range not because the radio IC is weak, but because the antenna environment is poorly controlled.

Grounding Strategy

The antenna region must be treated differently from the rest of the board. A solid and well-managed ground is critical for RF stability, but uncontrolled copper placement near the antenna can still hurt performance. Designers need to follow the module vendor’s grounding and keep-out recommendations closely rather than improvising around them.

Noise Isolation

Switching regulators, relay circuits, display interfaces, motor drivers, and fast digital clocks can inject noise into the RF section. In a compact IoT board, this is easy to underestimate. If noisy subsystems are placed too close to the wireless region, communication quality may suffer even when the design looks correct electrically.

Enclosure Interaction

Wireless performance is not determined by the bare PCB alone. Plastic thickness, internal standoffs, decorative coatings, nearby cables, and battery placement all influence the final RF result. That is why RF validation should be done in the real enclosure, not only on an open bench.

For smart home devices, stable wireless behavior is a basic product requirement, not an optional enhancement. A PCB that causes weak pairing, poor range, or intermittent reconnection issues will quickly undermine the entire user experience.

3. Low Power Consumption for Always-On Operation

Even products powered from mains often need efficient board-level power design. Smart home devices are expected to stay available at all times, and standby consumption directly affects thermal behavior, regulatory performance, and long-term operating cost.

For battery-powered products, low power becomes even more critical. A door sensor, lock module, or environmental node that drains its battery too quickly will be viewed as a poor product regardless of how good its features are.

PCB requirements for low-power IoT design include:

• short and clean current return paths
• regulator choices matched to sleep and active modes
• low-leakage layout around sensing and battery-monitoring circuits
• careful pull-up and pull-down strategy
• reduced waste in indicator LEDs and support circuits
• wake-up and sensing architecture designed for realistic duty cycles

It is also important to consider how layout affects actual current draw. Leakage, poor grounding, unnecessary conversion losses, and noise-triggered retries in communication can all increase power consumption in ways that are not obvious in early design reviews.

Low-power performance should be measured under real usage patterns, including sleep, wake, transmit, reconnect, and firmware update conditions.

4. Stable Power Management and Protection

Power architecture is one of the most important PCB requirements in smart home devices because product behavior often depends on it more than the processor itself.

A smart home PCB may need to handle one of several power situations:

• battery input
• USB or low-voltage DC input
• direct AC mains conversion
• energy harvesting support in specialized low-power designs

Each of these brings different layout and safety requirements.

For Battery-Powered Designs

The board should support efficient regulation, battery monitoring, reverse polarity protection where needed, and predictable behavior as voltage declines. Brownout behavior is particularly important. A smart home device should fail gracefully, not corrupt memory or enter unstable reset loops as the battery weakens.

For Mains-Powered Designs

Isolation distances, creepage and clearance, surge resilience, thermal control, and safe partitioning between high-voltage and low-voltage areas become essential. A smart plug or wall switch PCB is not just a low-voltage logic board with a relay attached. It requires disciplined separation and power-stage design.

For Mixed-Function Boards

If the product includes motors, relays, speakers, displays, or high-current drivers, the PCB has to prevent those loads from destabilizing the logic and communication sections. Poor decoupling or weak power partitioning often causes resets, communication dropouts, or erratic sensing behavior.

Power stability is especially important in smart home systems because users often interpret electrical instability as software unreliability. In reality, many “firmware issues” begin with board-level power behavior.

5. Sensor Accuracy and Signal Stability

Many smart home devices exist primarily to sense and respond: temperature, humidity, occupancy, current, smoke, gas, touch, movement, light level, or environmental status.

In these products, PCB design directly affects sensing quality.

Thermal Separation

A temperature sensor placed too close to a regulator, display backlight driver, MCU, or power resistor may measure the board’s self-heating instead of the room environment. This is a common issue in compact products such as thermostats and environmental monitors.

Analog Cleanliness

Sensors with small signal levels require protection from switching noise, poor grounding, and digital interference. If analog front-end routing is treated casually, the product may show drift, false triggers, or unstable readings that cannot be fixed later through calibration alone.

Mechanical Positioning

Some sensors need exposure to airflow, light, vibration, or touch conditions that are influenced by enclosure design. The PCB must align with these physical requirements. In smart home devices, good sensing performance is often the result of electrical layout and mechanical integration working together.

Long-Term Consistency

A sensor that appears accurate on day one may become less stable if thermal stress, contamination, or power noise affects it over time. Reliability therefore includes not just sensor function, but sensor repeatability across units and across field conditions.

6. Thermal Management in Small Enclosures

Thermal issues in smart home electronics are often subtle. A board may not contain obviously “hot” industrial components, but it still operates inside a sealed or semi-sealed housing with limited airflow.

Common heat sources include:

• AC-DC power sections
• Wi-Fi modules during continuous communication
• relay drivers and switching elements
• displays and backlights
• LEDs
• processors handling audio or video
• linear regulators operating with poor efficiency

In a small enclosure, even modest heat can create problems:

• sensor readings drift
• wireless performance changes
• component life shortens
• plastics discolor or deform
• touch surfaces become uncomfortably warm
• solder joint stress increases over time

Thermal design at the PCB level may require copper balancing, heat spreading regions, thoughtful component placement, regulator efficiency improvement, and separation between heat sources and temperature-sensitive circuits.

For always-on smart home devices, thermal stability matters not just for safety, but for measurement accuracy and long-term reliability.

7. EMC and Noise Control

Smart home products are full of mixed electrical behaviors. A single PCB may contain RF communication, digital processing, analog sensing, switching power, and load control. That makes EMC discipline essential.

Without proper noise control, designers may see:

• false sensor readings
• unstable wireless links
• unexpected resets
• touch interface glitches
• communication failures
• poor regulatory test performance

Important PCB considerations include:

Layer Stack and Return Paths

A well-structured stack-up helps provide stable return paths and reduces uncontrolled radiation. Even on cost-sensitive boards, ground continuity should not be sacrificed casually.

Partitioning of Functional Blocks

Noisy circuits should not be mixed indiscriminately with sensitive analog or RF areas. Good partitioning reduces both emissions and susceptibility problems.

Decoupling and Local Filtering

Decoupling strategy should reflect real switching behavior, not just schematic convention. Poor capacitor placement is still one of the most common causes of preventable noise issues.

Edge Cases and Transients

Products connected to relays, external cables, wall wiring, or switching loads must be designed for transient behavior. Smart home devices often operate in electrically messy residential environments, not ideal lab conditions.

EMC performance should be addressed early. If it is left until late-stage testing, fixes often become more expensive and less elegant.

8. Manufacturability and Production Consistency

A smart home device may sell in volumes much higher than an industrial specialty product. That makes manufacturability especially important.

A PCB that works in engineering samples but is difficult to build consistently will create major problems in mass production. Common risks include:

• overly dense placement
• poor solderability around shield cans or modules
• limited test access
• connector alignment issues
• tight mechanical tolerances
• unstable antenna performance from board variation
• thermal imbalance during reflow

Design for manufacturability in smart home IoT products should include:

• realistic pad and stencil design
• sufficient spacing for reliable placement and reflow
• accessible programming and test points
• clear polarity and orientation control
• mechanical tolerance review with the enclosure team
• early pilot build feedback before full-scale production

In consumer IoT, product reputation can be damaged by inconsistency just as much as by outright failure. If one batch pairs smoothly and another has weak RF range or unstable sensors, the market will treat that as a product problem, not a manufacturing detail.

9. Reliability Over Years of Residential Use

Smart home devices are often expected to remain installed for a long time with minimal maintenance. That means PCB requirements should include field reliability, not just initial functionality.

Residential environments may seem gentle compared with heavy industry, but they still introduce real stress:

• daily temperature changes
• humidity in kitchens, bathrooms, garages, or utility areas
• dust and airborne contamination
• frequent switching cycles
• power disturbances
• user mishandling during installation
• vibration in doors, walls, or appliances

A reliable PCB for smart home use should consider:

• connector stability
• solder joint durability
• contamination sensitivity
• protective coating where appropriate
• long-term capacitor behavior
• stable mounting and board support
• tolerance to repeated power cycling

The reliability target should reflect how the product is actually used. A ceiling sensor, smart plug, or door module is not a lab prototype. It is part of a real home system that users expect to forget about once installed.

10. Security Hardware and Serviceability Considerations

Security is often discussed as a software topic, but hardware decisions also matter. A smart home IoT PCB may need to support secure storage, safe boot behavior, protected debug access, and resilient update pathways.

From a practical PCB perspective, this can affect:

• component placement around secure elements
• test interface exposure
• programming access strategy
• reset and recovery architecture
• physical protection against accidental or unauthorized access

Serviceability matters as well. Even if a board is not designed for field repair, it should still support efficient production programming, calibration, test, and controlled failure analysis. Products that cannot be diagnosed efficiently become more expensive to support over time.

Design Tradeoffs Matter More Than Any Single Feature

One of the biggest mistakes in smart home PCB development is optimizing too hard for only one metric.

A board can be made extremely compact and then suffer from poor RF behavior.
It can be optimized for low cost and then become harder to manufacture consistently.
It can be designed around high integration and then become thermally unstable.
It can pass early functional test and still fail to deliver acceptable battery life.

Strong smart home IoT boards are usually the result of balanced engineering choices. They do not ignore cost or size, but they also do not sacrifice wireless quality, power stability, sensing accuracy, or manufacturability for short-term gains.

Final Thoughts

PCB requirements for smart home IoT devices go well beyond basic electrical connectivity. These boards must support wireless communication, low power operation, compact packaging, sensing stability, safe power management, thermal control, manufacturability, and long-term reliability, often within a very limited space and tight cost target.

That is what makes smart home PCB design challenging. The board has to do more than function. It has to behave consistently in real homes, over long periods of time, with predictable performance across thousands of units.

In that sense, good smart home IoT PCB design is not just about fitting components onto a board. It is about turning a connected product idea into hardware that people can actually trust in daily use. This is also why well-planned IoT PCB solutions matter so much in smart home development, where wireless stability, power efficiency, and long-term reliability all need to work together in one compact design.
