CNC Cost Drivers 101: Design Tweaks to Slash Your Price

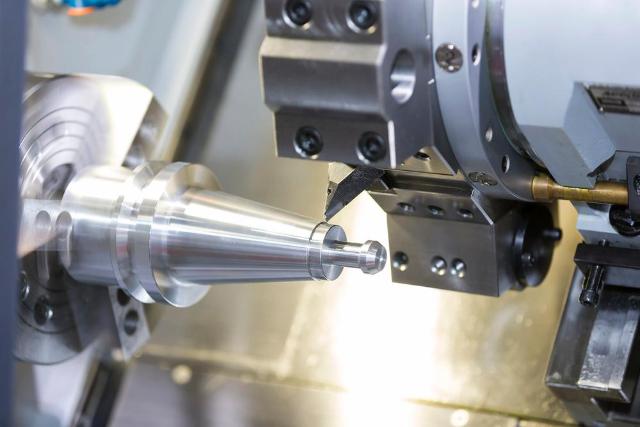

What Drives the Cost of Your CNC Parts?

Getting a high quote on a CNC part can be frustrating, but the price isn’t pulled out of thin air – it comes down to tangible cost drivers. In CNC parts machining , the major factors are material cost, machine run time, and labor/setup time. Harder or exotic metals cost more per pound and take longer to cut, while complex geometries (deep pockets, thin walls, sharp corners) force slower feeds or special tools. Every minute the cutter spends on the part is billed, and every fixture flip or programming hour adds overhead. By understanding these “big three” elements (material, machining time, labor), you can see why the quote is high and where to trim it.

The “Big Three” of CNC Pricing

Below are the three fundamental cost categories in a typical CNC quote. Optimizing each one is key to lowering your per-part price.

Have specific questions or are ready to begin executing your idea? Speak with our industry experts to start your journey: MetalWorks+ (https://metalworksplus.com/)

Material Costs: Stock Size & Machinability

Raw material is often the easiest part of the quote to spot. Cheap aluminum or plastic costs much less than stainless steel or titanium. Moreover, machinability matters: tough alloys take longer to cut. For example, milling a 304 stainless bracket can take ~3× longer than the same 6061‑T6 aluminum part, and titanium can take ~10× longer. (By contrast, soft plastics like Delrin can be cut even faster than aluminum.) Choosing a high-speed material like 6061‐T6 aluminum instead of 7075 or stainless steel is often a huge savings. Shops usually stock common bars and plates – parts that fit standard stock waste less and are quicker to source. In fact, “standard stock sizes and common material grades are generally less expensive and quicker to source than exotic materials or custom sizes”.

Typical cost estimations

Besides material choice, stock size affects cost. If your part barely fits on a standard bar or plate, there’s little waste. But if you need a special-size billet or plate, the shop may have to buy larger stock and cut away extra, driving up material cost. Designing your part to match typical stock dimensions wherever possible avoids this hidden expense.

Case Study: Optimizing an Aluminum Bracket

To illustrate these principles, consider a simple aluminum bracket before and after a DFM cleanup.

• Before: Sharp 90° internal corners, five different tapped hole sizes, and features on three sides that required three setups.
• After: Added generous corner fillets, consolidated all holes to a single size, and adjusted features so the part could be machined in two setups.

By following the above tweaks – especially adding corner reliefs and standardizing holes – we turned a high-cost bracket into a much cheaper one without sacrificing function.

Machining Time: How Long the Cutter Is Actually Cutting

Machine time is literally money. Every second the spindle is on the part adds to the bill. Complex shapes or multiple features increase the length of the toolpaths and the number of cuts required. For example, deep cavities or long narrow pockets often need extra-long end mills, which cut more slowly and risk chatter. In general, larger tool diameters and simpler moves save time: avoid tiny features, high aspect-ratio pockets, or lots of tiny bosses. Even subtle design changes—like replacing a 90° internal corner with a large fillet—can let the machine use a bigger cutter and speed up material removal. In short, the simpler and “flatter” the toolpaths, the lower the runtime cost.

Typical Machine Hourly Rates (Operational Cost)

Labor & Setup: CAM Programming and Part Flips

Beyond cutting time, there are labor and setup costs. Every unique part generally requires CAM programming (toolpath planning) and a fixturing setup on the machine, which are charged up-front. Complex parts need more programming effort and may require multiple fixture setups or even specialized machines. For example, a part that must be machined on 5 sides or on a 5-axis mill takes much longer to program and set up than one that runs on two opposite faces. Each time the machinist flips or re-clamps the part, it adds manual labor and risk of error. Keeping the number of setups low (ideally 1–2 sides of a 3‑axis machine) greatly cuts down on labor time.

By optimizing material, cutting time, and labor/setup, you control the bulk of the CNC quote. The rest is mostly fixed overhead or economies of scale (e.g. quantities). With that foundation in mind, let’s look at specific design tweaks to drive costs even lower.

Design Tweaks to Slash Costs

Use these Design for Manufacturability (DFM) tips to trim CNC expenses. Each small change can shave minutes (or more) off the machining process. In most cases, a 3–5 sentence summary with references is sufficient, as each heading below suggests. These tweaks often alone can cut costs 10–30% (or more).

1. Add Fillets to Internal Corners

Avoid perfect 90° inside corners. Standard end mills always leave a rounded corner (equal to the cutter radius) if you don’t program a relief. On your drawing, specify corner radii (fillets) in pockets and cavities. A larger radius lets the shop use a bigger cutter, which removes material much faster. For example, setting an internal fillet radius at least one-third of the pocket depth (R ≥ 1/3 D) is a good rule-of-thumb. Fillets eliminate the need for slow, small-diameter tools or expensive EDM work. (Prototypical designs with corner reliefs let jobs go deeper without slowing down.) In practice, adding even a 1–2 mm radius in each inner corner can cut cycle time significantly.

2. Limit Tight Tolerances to Mating Surfaces

Only specify very tight tolerances on critical mating features (bores, shafts, fits). Everywhere else, use standard machining tolerances (ISO 2768-m or similar). If every dimension on your drawing has ±0.01 mm accuracy, the machine will slow feeds, add extra passes, and inspections. Instead, reserve fine tolerances for interfaces or precision fits, and leave non‑critical dimensions at default (e.g. ±0.125 mm or ±0.005″). This simple change often doubles feed rates in non-critical areas and avoids costly rework.

3. Avoid Deep, Narrow Pockets

Steering clear of deep, skinny pockets (high depth-to-width ratio) prevents tool deflection and breakage. Long, narrow tools vibrate and force very slow cutting. Wherever possible, shorten pocket depth or make them wider. A good guideline is to keep the pocket depth below 3–4 times the tool diameter. Beyond that ratio, cycle time can explode: DSR’s experiments show machining beyond a 4:1 depth:diameter requires special, slow cuts. If a deep pocket is unavoidable, consider splitting it (two shallower pockets) or designing side reliefs.

4. Standardize Your Hole Sizes

Use common drill and tap sizes whenever you can. Specifying, say, a 3.14 mm hole (instead of a standard 3.0 or 3.5 mm) forces a shop to either ream or mill that hole, which is slower than using an off-the-shelf drill bit. Similarly, consolidating tapped holes to one thread size (for example, all M5 holes) means the shop only needs one tap tool and drill. Standard sizes let machinists drill and tap with high-speed tooling. Remember: “non-standard” bores often require custom end mills, spiral interpolation, or slower cycles. Checking a standard drill chart during design time (or asking your partner which sizes they stock) can avoid hidden time sinks.

Conclusion

Smart design is the fastest way to cut manufacturing costs. By applying the tweaks above – generous fillets, sensible tolerances, standard features, and mindful geometry – you reduce cutting time and wasted operations. In the words of machining experts, “a part with redundant features removed…is not only cheaper, but also lighter, has fewer stress concentrations, and can be delivered faster”. At MetalWorks Plus, we’re committed to helping customers optimize their designs (and quotes). Got a tough part? Contact us for a DFM review and see how much you can save with better CNC design.
