Precision Electronics Manufacturing - Soldering, Connectivity and Quality Assurance

An audio console has thousands of solder joints. Every joint must conduct electricity reliably for years. A single cold joint causes intermittent failure. A connector with poor shielding introduces noise into the signal.

Electronics manufacturing depends on two things: good soldering and good connectors. One creates the electrical connections. One provides the physical interfaces. Both demand precision and consistent quality.

Soldering quality

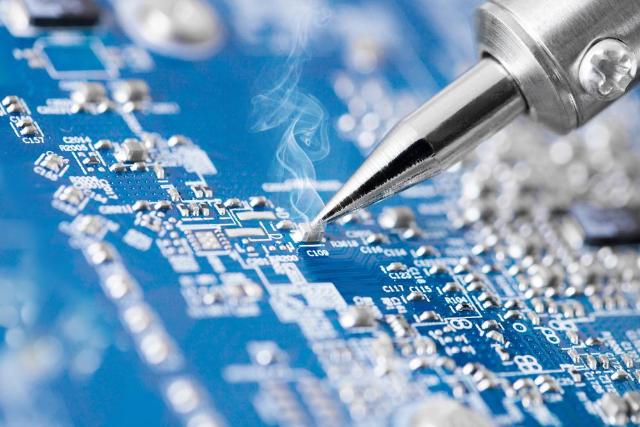

Soldering is the most common way to join electronic components. A soldering iron heats the joint. Solder melts and flows. It cools and creates an electrical connection.

The quality of this process depends on temperature control. A soldering station that fluctuates by ten degrees produces inconsistent joints. Some joints are cold and brittle. Others are overheated and damage components.

Good soldering stations hold temperature within one degree. Digital controls maintain the set temperature. The tip recovers quickly after touching a joint. Results are consistent across hundreds of joints per hour.

Temperature tracking adds quality assurance. Each joint gets logged with the soldering temperature and duration. If a batch of boards fails testing, the production record shows which station and operator did the soldering. Root cause analysis becomes fast and precise.

Tip maintenance is another important factor. A dirty or oxidized tip transfers heat poorly. The operator spends more time on each joint. Quality suffers. Modern stations include tip cleaning routines and replacement reminders.

Hot air rework stations handle surface-mount components. They direct hot air at specific areas to reflow solder. Precise temperature and airflow control prevent damage to nearby components. Training operators on proper rework technique reduces board scrap rates significantly.

Different solders require different profiles. Lead-free solder needs higher temperatures than leaded solder. The right profile ensures proper wetting without overheating. Programmable soldering stations store profiles for different solder types. The operator selects the right one for the job.

Connectors

Connectors provide the interface between circuits. A bad connection causes intermittent failures that are hard to diagnose. Signal integrity depends on clean, consistent connections.

Different applications need different connectors. XLR connectors carry professional audio signals. RJ45 connectors handle network data. Power connectors deliver electricity. Each type has specific performance requirements.

Manufacturing quality connectors requires precision. The contacts must be the right shape and material. Plating thickness must be consistent. The housing must align the contacts correctly. Testing every connector before shipment is standard practice. Automated testers check continuity, insulation resistance, and insertion force.

Environmental protection adds complexity. Outdoor and industrial connectors need IP65 or IP67 ratings. Seals keep out water and dust. The sealing adds manufacturing steps and quality checks.

Stainless steel connectors offer durability for demanding applications. They resist corrosion and handle rough treatment. A stainless XLR connector used on stage can withstand being dropped and stepped on without failing.

Connector mating cycles matter. A connector rated for 1,000 mating cycles will wear out after that many insertions. In applications where connectors are frequently connected and disconnected, choosing a connector with a higher cycle rating extends the product life.

ESD control

Electrostatic discharge destroys sensitive electronic components. A person walking across a carpet generates enough static to damage a chip. Electronics manufacturing requires strict ESD control.

Soldering stations and assembly benches must be grounded. Operators wear ESD-safe wrist straps. Floors and work surfaces use conductive materials. ESD monitoring systems track compliance and alert on violations.

Data-driven quality

Both soldering and connector production benefit from data collection. Defect rates get tracked by process step. Root cause analysis becomes faster when you have data.

A production line that monitors soldering temperature and connector pull force catches problems early. The system flags out-of-spec readings. The operator adjusts before producing a batch of bad parts.

Statistical process control tracks trends. If a certain station produces more defects at the end of a shift, operator fatigue might be the cause. If a batch of connectors from a specific lot fails testing, the material supplier needs investigation.

This data feeds into continuous improvement programs. Each defect gets analyzed. The root cause gets fixed. Defect rates drop over time.

First pass yield is a key metric. It measures the percentage of products that pass all tests without rework. A high first pass yield indicates a stable process. A low yield signals problems. Tracking it daily keeps the team focused on quality.

Automated optical inspection

AOI systems use cameras to inspect solder joints after reflow. They compare each joint against a reference image. A joint with insufficient solder gets flagged. A bridge between adjacent pins gets caught.

AOI catches defects that functional testing misses. A joint that conducts electricity today but will crack after thermal cycling might look fine in functional test. AOI sees the insufficient wetting and flags it.

For high-reliability applications like medical devices and aerospace, AOI is mandatory. The cost of a field failure is too high to skip inspection.

X-ray inspection adds another layer for hidden joints. Ball grid array components have solder joints under the package where cameras cannot see. X-ray systems inspect these joints. They detect voids, bridges, and insufficient solder. For complex electronics, X-ray inspection is becoming standard practice.

Takeaway

Precision electronics needs precision process control. Temperature-controlled soldering and quality connectors form the foundation of reliable electronics. Smart monitoring adds the data layer that ensures consistent quality.

For electronics manufacturers, investing in process control reduces returns and builds customer trust. The tools are proven. The data is clear. Good joints and good connections make electronics that work the first time and keep working for years.
